About Cell Stretching System

Our Cell Stretching Systems [ShellPa] and [ShellPa Pro] have been developed under close supervision by Prof. Keiji NARUSE, Department of Cardiovascular Physiology, Graduate School of Medicine, Dentistry and Pharmaceutical Sciences.
Prof. Naruse established a business venture, Strex Inc. and has been working through the research development for the cell culturing systems with mechanical stresses. The research achievement with over 20 years including the establishment of Strex Inc. has been taken over to Strex International, LLC that offers research development for laboratory equipment and medical devices based on the Mechanobiology, and the technologies are applied to our products.

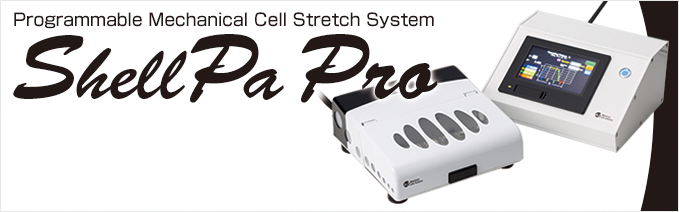

What is ShellPa Pro?

Stretching culture

“ShellPa Pro” is a mechanical cell stretch system developed to replicate the dynamic environment inside the human body and to apply mechanical stress on cells being cultured outside the body. Changes and responses of cultured cells, not obtainable in conventional static cell culture, can be observed. “ShellPa Pro” in addition to the basic functions of “ShellPa”, provides a greater variety of dynamic environments.


Product Features

伸展率
1

Variety of stretch pattern setting available

  • Operating pattern - Sine wave, Square wave, Triangle wave, Saw-tooth wave, etc.
  • Stretch velocity - 0.4mm/min(1%)- 960mm/min (20%)
  • Stretch ratio - 1-20% (in 1% steps)
  • Retention of stretching state - Retention of stretching state and non-stretching state for 24 hours
  • Setting of continuous stretch frequency - Automatic standstill at the end of the set frequency

2

Condition setting by functional touch panel

Easy condition setting using simple and functional touch panel of the controller.


1Use of electronic motor with little heat generation

Using a motor with little heat generation to drive the stretch, it will not give a significant impact in the laboratory incubator.

Stretch Pattern

Program functions of “ShellPa Pro” enable setting of the stretch ratio, stretch velocity, stretch retention time, the number of the continuous stretch frequency, etc. A variety of mechanical stress can be applied to cells by modifying basic square and sine wave patterns. (See Figure 1 below)

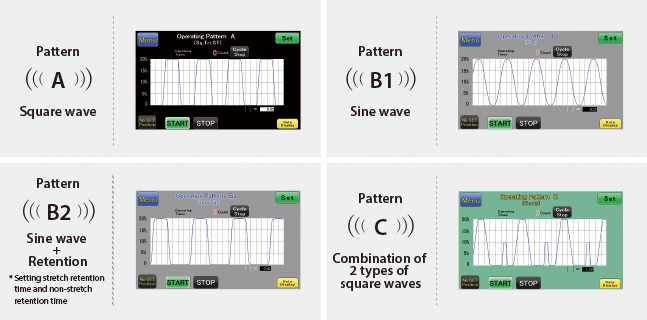

[Figure 1.] Operating Pattern (showing reference wave patterns)

Operating Pattern

How to enter the Operating Pattern

Set the stretch conditions by entering each parameter (1, B, C, D, E) on the touch panel screen in Figure 2 below.


Example of entering the Operating Pattern (Pattern A)
Example of entering the Operating Pattern (Pattern A)
  • 1:Stretch ratio (%)
  • A:Stretch frequency (A = B + C + D + E)
  • B:Time required to reach the longest stretch
      (Slope: Stretch velocity)
  • C:Retention time in the longest stretch state
  • D:Restoration time required to reach a
      non-stretching state
      (Slope: Restorative velocity)
  • E:Time for static cell culturing
      (Retention time in non-stretching state)
  • Cycle:Number of continuous stretch frequency
        Set the number of operations before the
        automatic standstill in multiples of the
        stretch frequency (A).

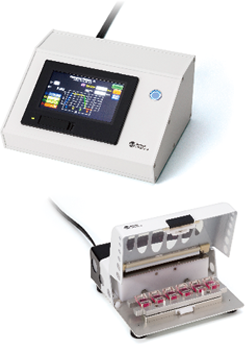

Operation

Operation
  • Seed and culture cells in the stretch chambers.
  • Turn on the controller, select the basic pattern (square wave,
     sine wave) on the touch screen, and set the stretch conditions
     (stretch ratio, stretch velocity, stretch retention time, etc.).
  • Place the stretch chambers onto the chamber holder.
  • Place the chamber holder into the main unit.
  • Press the start switch (touch switch) on the controller to start
     stretching culture.

Practical Examples

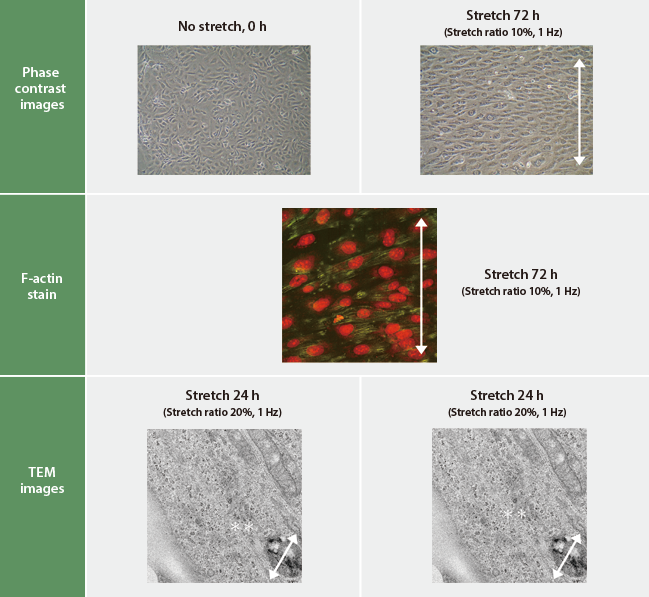

Stretching culture of Human Umbilical Vein Endothelial Cells (HUVEC)

Stretching culture of Human Umbilical Vein Endothelial Cells (HUVEC)

Stretching culture of HUVEC for 24-72 hours caused an alignment of cells perpendicular to the direction of stretching (top right) by using ShellPa Pro (stretch ratio 10%, 1Hz). Expression of stress fiber F-actin (green stain, middle left, middle right) was also observed.
Transmission electron microscopy showed expressions of actin fiber perpendicular to the direction of stretching (twin asterisks at bottom left) and stress fiber by assembling of action fiber (twin asterisks at bottom right). White arrows show the direction of stretch.

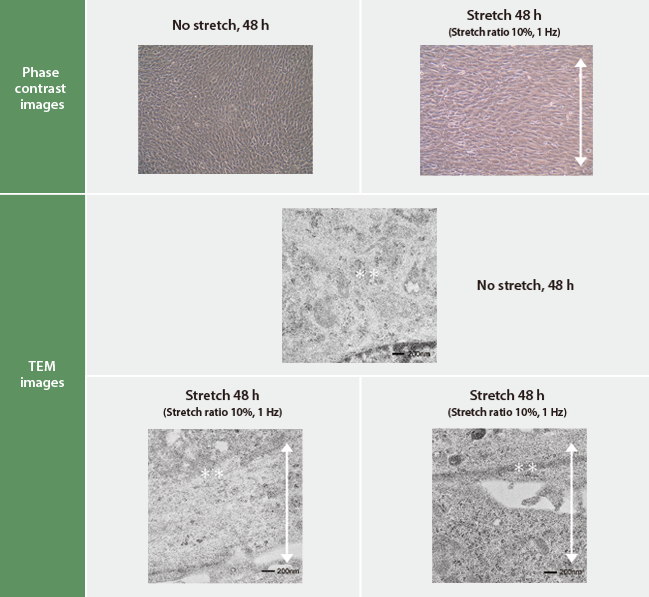

Stretching culture of Murine myoblast cell line (C2C12 cells)

Stretching culture of Murine myoblast cell line (C2C12 cells)

Stretching culture of C2C12 cells for 24-48 hours caused an alignment of cells perpendicular to the direction of stretching (top right) by using ShellPa Pro (stretch ratio10%, 1Hz).
Transmission electron microscopy of C2C12 cells without stretching showed expression of randomly arranged actin fiber (middle left, middle right).
Stretching culture of C2C12 cells for 48 hours caused expressions of actin fiber perpendicular to the direction of stretching (bottom left) and stress fiber by assembling of actin fiber (bottom right). White arrows show the direction of stretch.

System Configuration

シェルパプロ 本体   シェルパプロ コントローラー

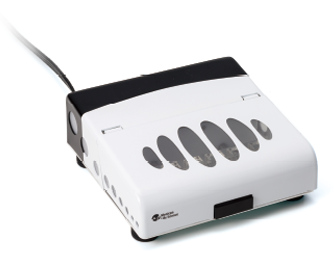

Main unit

Size:290(W) x 300(D) x 120(H)mm
   (cover closed)
   290(W) x 300(D) x 255(H)mm
   (cover open)

Weight:6kg

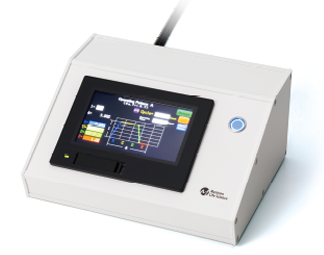

Controller

Size:320(W) x 270(D) x 155(H)mm

Weight:4kg

AC:IP 100-240V 47-63Hz,
   OP DC24V 2.5A (Max)


Stretch chamber specifications

Stretch chamber specifications

The chamber has been developed specifically for the ShellPa series. Cells are observable through a transparent bottom membrane with a microscope. The chamber’s high elasticity and restorative ability enable consistent experiments in ShellPa series.

Material:PDMS (Polydimethylsiloxane)
Area of base for culturing:4㎝2

Need to be coated (e.g. with fibronectin, collagen) before culturing

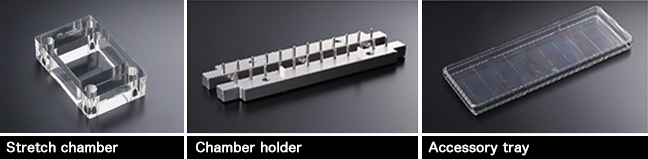

Stretch chamber、Chamber holder、Accessory tray

Optional parts (not included)

Double-chamber holder

Using the double-chamber holder, stretch culturing in up to 12 stretch chambers at a time can be performed under identical conditions.


Product Specifications

ShellPa Pro ShellPa
System image ShellPa Pro ShellPa
Size (main unit) 290(W)x300(D)x120(H) mm 270(W)x210(D)x93(H) mm
Weight (main unit) 6kg 3kg
Drive system Electric motor Compressor
Stretch ratio 1–20% (in 1% steps) 2,4,5,6,8,10,12,15,20%
Frequency 1/60–2Hz 1/60–2Hz
Stretch velocity 0.4mm/min(1%)~960mm/min(20%) Constant (low-velocity unavailable)
Stretch wave pattern Sine wave, Square wave, Triangle wave, Saw-tooth wave, and combination of two types of Square waves Square wave, Triangle wave
Stretch retention 0 sec–24h Linked to frequency
Max. 30 sec. at 1/60 Hz
Timer Function
(Automatic standstill)
Set the repetition number of the continuous stretch frequency Set cyclic stretch-standstill time in 10 min. and the repetition number of times (1–100 times)
No. of mounting chambers 6 (Optional, max. 12) max. 6
Power supply adapter IP 100-240V 47-63Hz
OP DC24V 2.5A (max)
IP 100-240V 50/60Hz
OP DC12V 1A (max)
